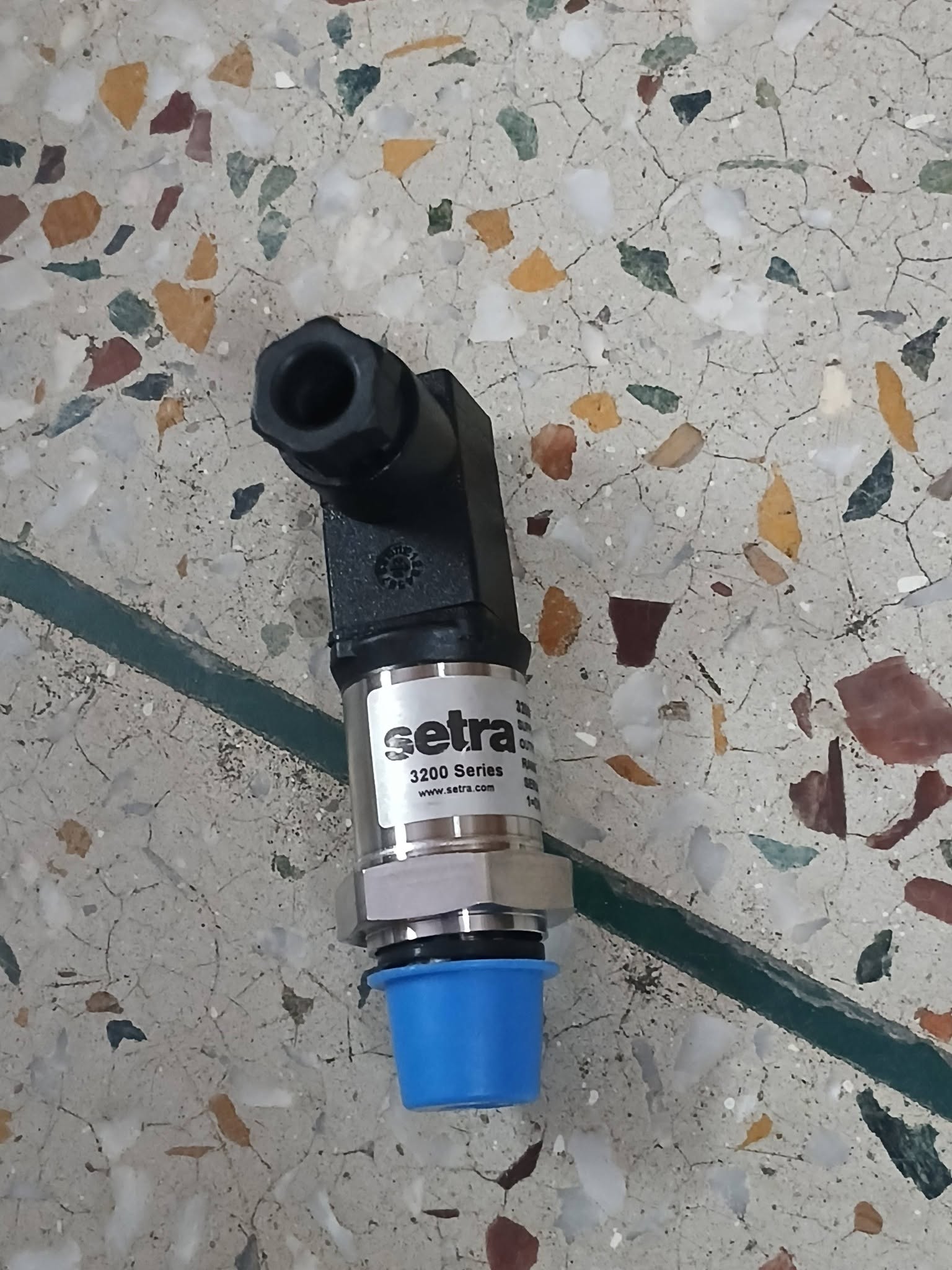

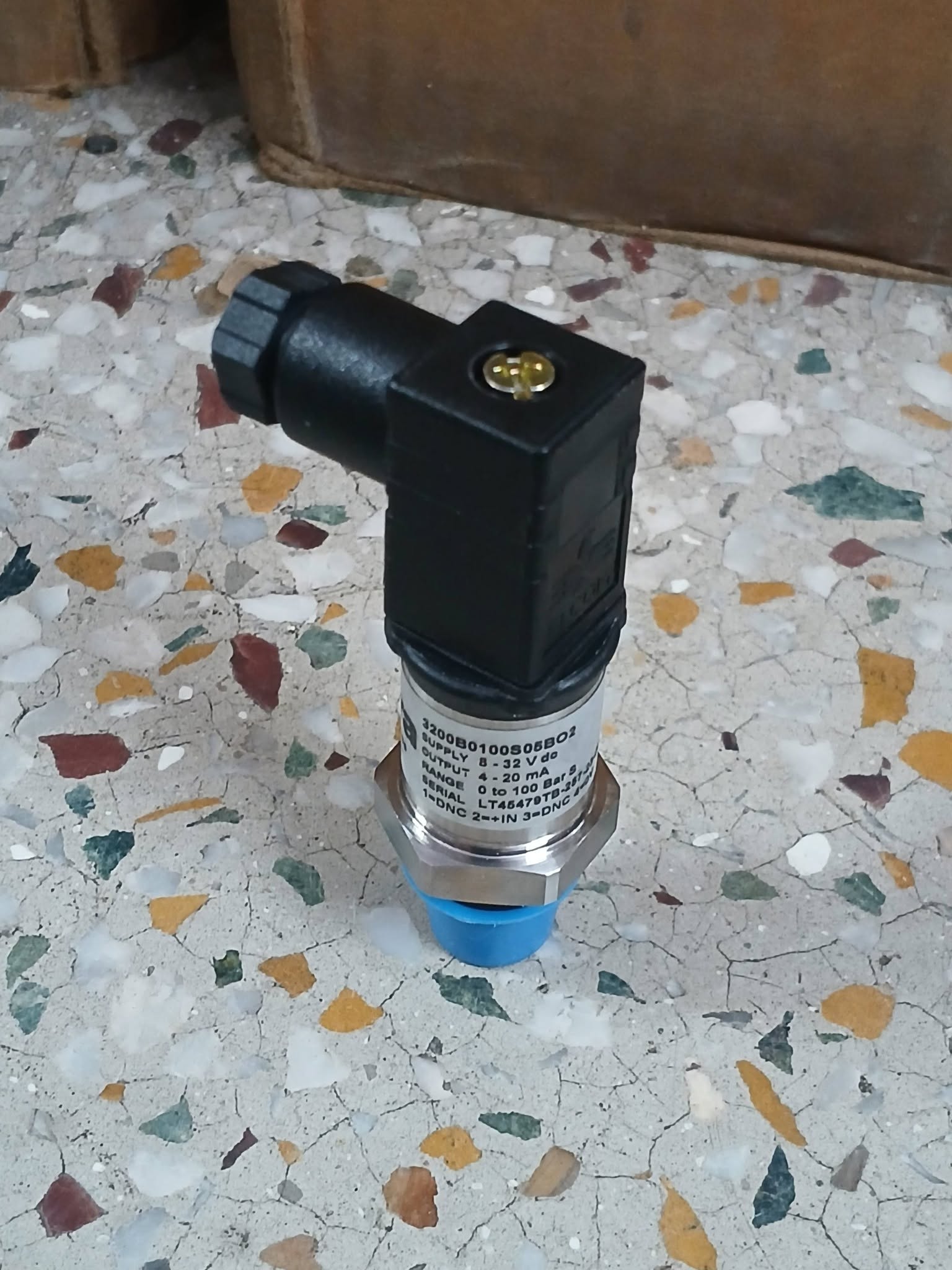

SETRA Pressure Transmitter 3200B0100S05BO2 Range 0 to 100 Bar

SETRA Pressure Transmitter 3200B0100S05BO2 Range 0 to 100 Bar

SETRA Pressure Transmitter 3200B0100S05BO2 Range 0 to 100 Bar

The SETRA Model 3200 is a heavy-duty industrial OEM pressure Transducer using a sputtered thin-film sensing element. The Model 3200 is designed for demanding industrial applications and is available with Different Pressure Ranges, outputs, pressure ports and electrical connections.

Product Information

• Brand: SETRA
• Model: 3200
• Part No.: 3200B0100S05BO2
• Type: Pressure Transmitter / Pressure Transducer.
• Pressure Range: 0 to 100 Bar
• Pressure Type: Gauge
• Technology: Sputtered Thin-Film
• Construction: All-welded stainless steel
• Protection: IP67
• Accuracy: Model 3200 specifications vary by configuration; the current SETRA product page lists up to ±0.25% FS, while the referenced 3200 datasheet lists ±0.5% FS. Verify the exact part-number configuration before publishing a guaranteed accuracy.

Technical Data

The 0–100 Bar range is within the Model 3200’s published range options.

Product Features

• Heavy-duty industrial design
• Sputtered thin-film pressure sensing
• Compact construction
• All-welded stainless-steel body
• IP67 environmental protection
• Excellent long-term stability
• High resistance to vibration
• Reverse-wiring protection
• Multiple electrical output options
• No oil-filled sensing system
• Designed for OEM and industrial applications
• RoHS compliant
• CE/UL approvals available depending on configuration

Field of Application

Suitable applications include:

• Industrial machinery
• Hydraulic systems
• Pneumatic systems
• Compressors
• Pumps
• Process equipment
• Chemical processing
• Oil & gas equipment
• Water-treatment equipment
• HVAC and building equipment
• OEM machinery
• Factory automation
• Heavy industrial equipment
• Pressure monitoring and control systems

SETRA states that its pressure transmitters are designed for applications involving both liquids and gases, subject to material compatibility.

Ambient Condition

• Operating temperature: approximately -40°C to +125°C
• Storage temperature: approximately -40°C to +125°C
• Protection: IP67
• Suitable for demanding industrial environments
• High vibration resistance
• Media must be compatible with the wetted materials.

Material

Wetted Parts:

• 17-4 PH Stainless Steel diaphragm
• 304 Stainless Steel fittings

Body/Construction:

• Stainless-steel construction
• All-welded design

The exact pressure-port material/configuration should be confirmed against the individual part-number ordering code.

Electrical Data

The Model 3200 platform supports different electrical configurations, depending on the ordered part number:

Current Output

• Output: 4–20 mA
• Circuit: 2-wire
• Excitation: 8–30 VDC

Voltage Outputs

• 0–10 VDC
• 0–5 VDC
• 1–5 VDC
• 1–6 VDC
• 0.5–4.5 VDC

Ratiometric

• 0.5–4.5 VDC
• 5 VDC nominal excitation

The exact output for 3200B0100S05BO2 should be confirmed from the manufacturer’s ordering configuration before specifying it on a product listing.

Installation Guide

1. Confirm that the pressure range and pressure medium are suitable.
2. Install the transmitter using the correct pressure connection.
3. Do not exceed the rated pressure range during normal operation.
4. Connect the electrical supply according to the applicable wiring diagram.
5. Use appropriate shielded cable where required by the installation environment.
6. Ensure proper grounding for metal housings/enclosures.
7. Avoid excessive mechanical stress on the pressure port and electrical connector.
8. Check for leakage after installation.
9. Apply pressure gradually during commissioning.

SETRA’s installation instructions specify that the Model 3100/3200 is designed for gases or liquids compatible with 17-4 PH stainless steel and provide separate wiring arrangements for voltage and current outputs.

Approval & Compliance

Depending on configuration, the Model 3200 platform is specified with:

• CE
• UL
• RoHS
• IP67 protection

Approval availability can depend on the exact electrical and mechanical configuration.

Accessories

Possible accessories include:

• Mating electrical connector
• Pressure fittings/adapters
• Electrical cables
• Mounting accessories
• Connection adapters
• Calibration documentation
• Protective accessories
