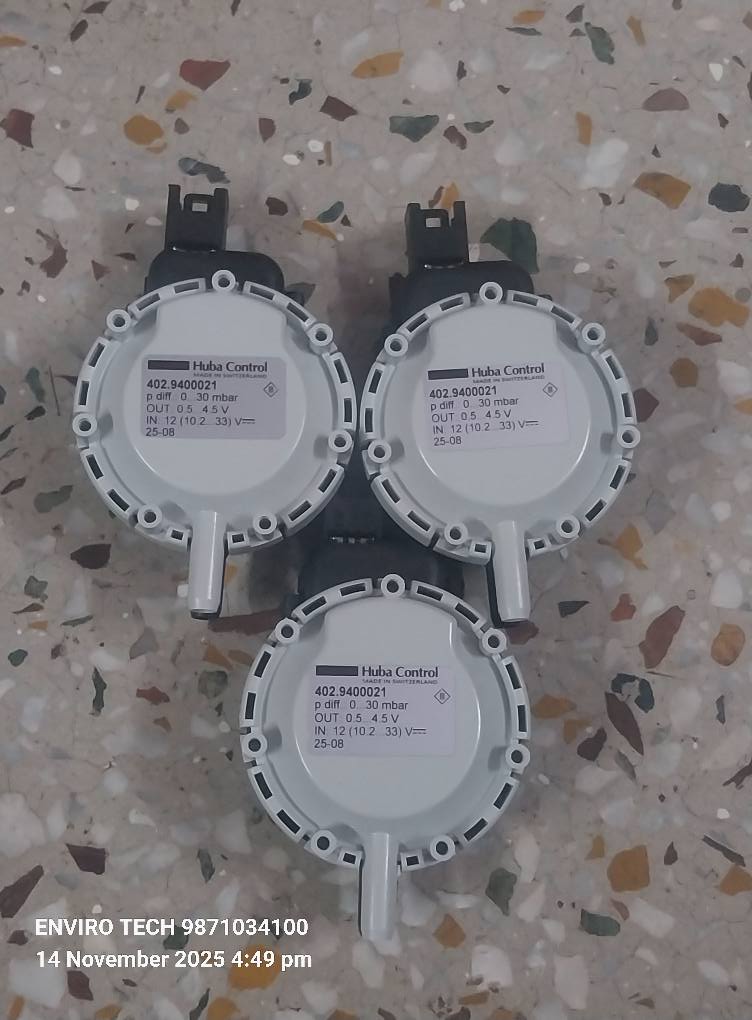

Huba Control 402.9400021 Differential Pressure Transmitter

• • Huba Control 402.9400021 Differential Pressure Transmitter

    • • Differential Pressure Transmitter
      • Type – 402
      • Manufacturer – HUBA CONTROL
      • Model – 402.9400021
      • RANGE – 0-30 MBAR
      • OUT – 0.5….4.5 V
      • IN – 12 ( 10.2…. 33 ) V
    Product information

    • Differential Pressure Transmitters of Type 402
    • • Attractive Price-Performance Ratio
      • Excellent Synergy Of Membrane Technology And Ceramic Elements
      • Special Adapter For DIN Rail Mounting
      • Direct PCB Mounting With Simple Snap System

    Technical Data

    Product Feature
    • • Pressure Measuring Range : 0…50 mbar Relative and Difference
      • Response Time : <10 ms
      • Load Change : <10 Hz
      • Sensor Weight : 28 g

    Field Of Application

    • • Media : Air Neutral Gases
      • Medium Temperature : 0…70 °C Non-Freezing Media
      • Permissible Overload On One Side : 100 Mbar
      • Bursting Pressure At Room Temperature : 200 Mbar
      • Bursting pressure at 70°C : 150 Mbar

    Ambient Condition

    • • Ambient Temperature : 0… 70 °C
      • Storage Temperature : -30 …70 °C

    Material

    • • Housing With Media Contact : Polycarbonate (PC); Polyamide (PA)
      • Membrane With Media Contact : Silicone
      • Measuring Element With Media Contact : Ceramic Al2O3 (96 %)

    Electrical Data

    • • Output Pressure : 0,5 …4,5 V
      • Supply Voltage : 10,2 …33 VDC
      • Permissible Load : >15 kOhm Against GND
      • Current Consumption : <8 mA
      • Inverse-Polarity Protection : Mechanically Guaranteed
      • IP Protection Class : IP 00
      • Electrical Connection : Printed Circuit Board Assembly Solderable Pins On The Print Side Printed circuit board assembly Mounted And Soldered On Adapter RAST 2.5 Connector

    Approval

    • • EMC Compatibility :The Product Is Intended Exclusively For Installation In Appliances That Fulfil The Requirements Of The EC Directives CE Certification Is The Responsibility Of The Customer

    Installation guide

    • • Installation Orientation : Pressure Connections Downwards; Pressure Connection P1 Top
      • Assembly : Snap-On Mounting On Printed Circuit Board (Max. 1.6 MM Thickness); Adapter; Screw Mounting With Bracket.

    Applications
    • • VAB SYSTEMS
      • ERV
      • MOBILE HYDRAULIC
      • INDUSTRIAL AUTOMATION

    Accessories
    • RAST 2.5 Connector : With Cable; 110 CM; 3-Pole
    • Fastening Screw : For Wall Thickness 1 – 2 MM; Screw Length 6 MM (Min. 2 Screws Required)
    • Calibration Certificate
    • Mounting Bracket
    • Mounting Plate Complete For Mounting Rail TS 35
    • Fastening Screw : For Wall Thickness 4.1 – 6 MM; Screw Length 10 MM (Min. 2 Screws Required)
