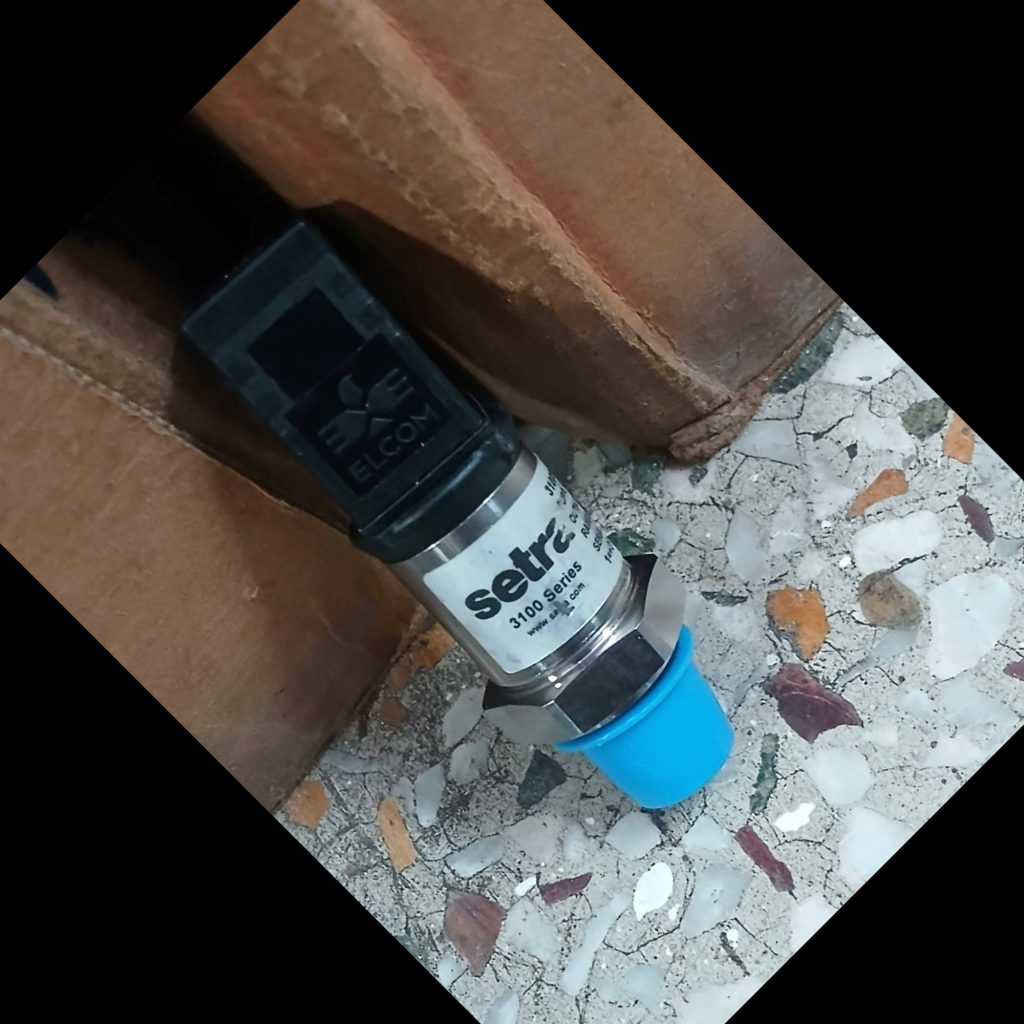

Setra Model 3100B0010C02B is a High-Pressure OEM Pressure Transmitter Designed For Accurate And Reliable Measurement Of Hydraulic And Industrial Pressure.It Uses Sputtered Thin-Film Sensing Technology With Rugged Stainless-Steel Construction And IP67 Environmental Protection.The 0–10 Bar Range Makes It Suitable For Demanding High-Pressure Applications
Long-Term Stability: Model-series specification applies; verify the applicable range limit before stating a specific value
Pressure Medium: Compatible liquids and gases, subject to wetted-material compatibility
Construction: Compact industrial OEM design
Protection Features: Reverse-wiring protection is available according to the applicable electrical configuration
Compliance: RoHS compliant
Applications: Hydraulic systems, industrial process monitoring, compressors, pumps, refrigeration systems, irrigation equipment, pressure-control systems and OEM machinery
Installation: Mount using the correct pressure port and compatible sealing method. Connect the 4–20 mA loop with the correct supply polarity and ensure the pressure remains within the rated range.
Maintenance: Periodically inspect pressure connections, electrical wiring and sealing surfaces. Avoid pressure surges beyond the rated limits.
Product Use: Continuous pressure measurement and feedback for industrial monitoring and control systems.
Product Features
High-Pressure Measurement Up to 10 Bar
±0.25% FS Accuracy
Sputtered Thin-Film Sensing Element
Rugged Stainless-Steel Construction
IP67 Protection Against Moisture And Dust
Fast Response Time
Wide Operating Temperature Range
Reverse Wiring Protection
Suitable For OEM And Industrial Equipment
Designed For High Shock And Vibration Environments
Field Of Application
Hydraulic Pressure Systems
Hydraulic Machinery
Industrial OEM Equipment
Pumps and Variable-Speed Pumps
Compressors
Refrigeration Systems
Industrial Machinery
Irrigation Pressure Systems
Process Control Equipment
High-Pressure Fluid Systems
HVAC/R Equipment
Ambient Condition
The Transmitter is Designed For Demanding Industrial Environments. Operating And Storage Temperature is Approximately -40°C to +125°C. IP67 Enclosure Protection Provides Resistance Against Dust And Temporary Water Exposure Material
The Model 3100 Uses An All-Welded Stainless-Steel Construction.Wetted Components Include Stainless-Steel Materials Suitable For Compatible Industrial Pressure Media Electrical Data
Output: 4–20 mA
Supply: 8–30 VDC
Circuit: 2-wire
Electrical Connection: DIN 43650 Form C
Reverse Wiring Protection Is Provided
Installation Guide
Install The Transmitter On a Compatible Pressure Port Using The Correct Sealing Method And Suitable Tools.Ensure That The Pressure Applied Remains Within The Rated 0–10 Bar Range.Connect The Power Supply And Signal Wiring According To The Specified Electrical Configuration.For Outdoor Or Electrically Noisy Installations,Use Appropriate Shielded Wiring And Grounding Practices.Avoid Excessive Mechanical Stress On The Transmitter And Wiring Approval
cURus Approved And RoHS Compliant.Always Verify The Exact Certification Requirements For The Intended Installation Before Commissioning Accessories
Compatible Accessories May Include Pressure Fittings,Sealing Components, Electrical Connectors,Cables,Mounting Hardware and Signal/PLC Interface Equipment.Select Accessories According To The Actual Pressure Connection,Electrical Connection And Application Requirements
