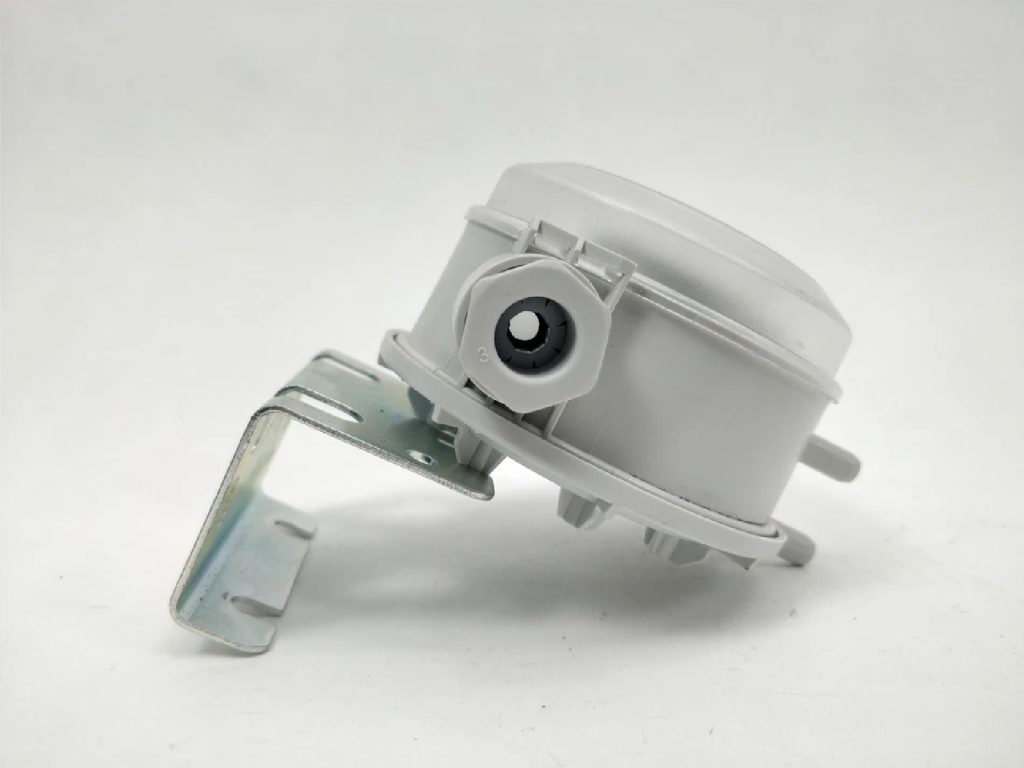

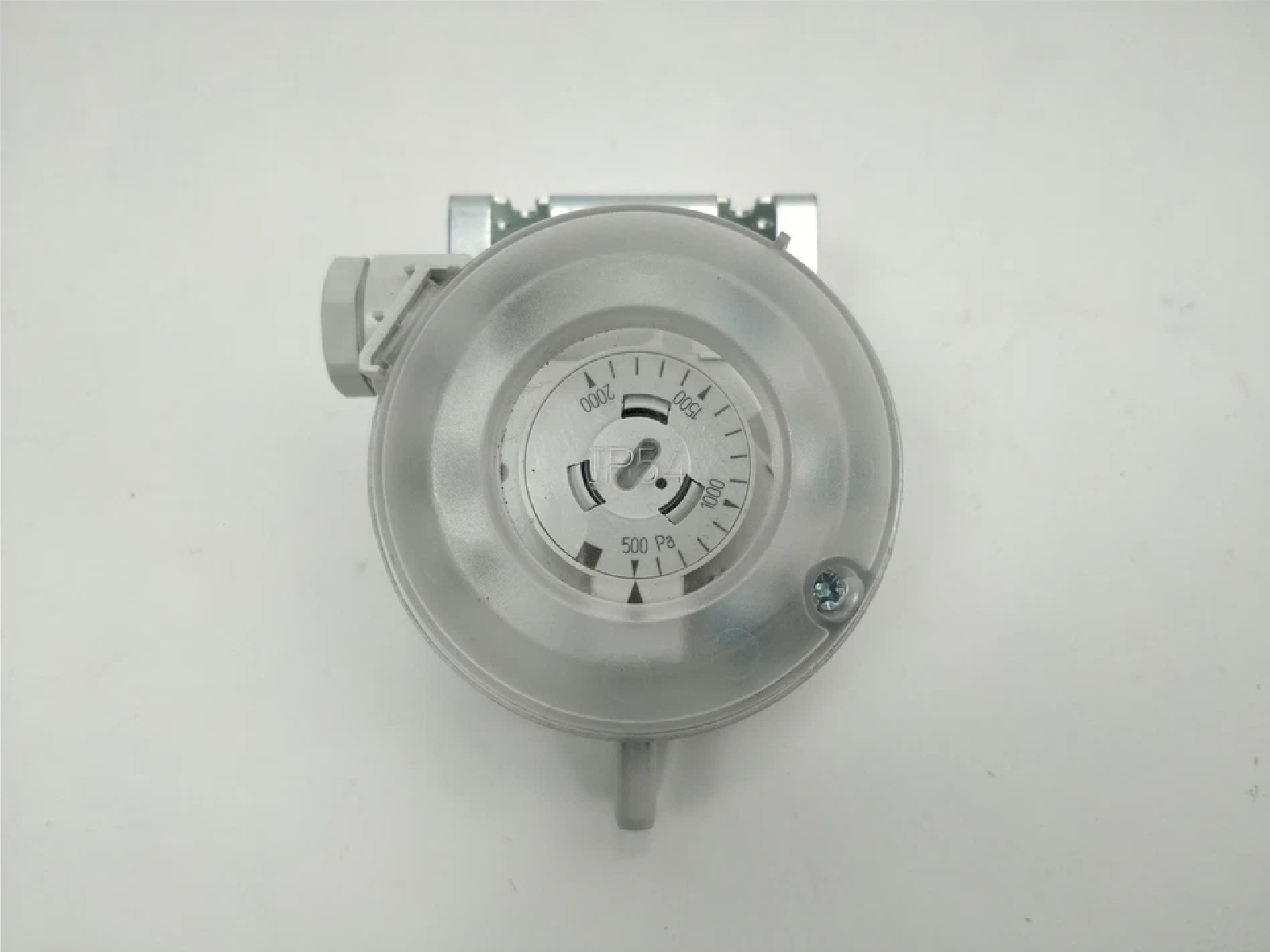

Huba Differential Pressure Switch Range 500 To 2000 Pac
Model : 604.9410002 Range : 500….2000 PAC Max : 50 Mbar ( -30T85 ) Max : 50 Mbar ( -30T75 ) Made In Switzerland .
Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Δp Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving
Easy To Install
User-Friendly Snap Closure For The Cover
Cable Entry Aid
Cable Strain Relief Integrated Into PG11
Combination Bracket For Vertical Or Horizontal Mounting
High Adjustment Accuracy Through Individual Scale Engraving Per Switch
Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
Multilayer Contact With Gold Plating
Technical Data
Pressure Measuring Range: 0…50 Mbar Relative & DifferenceSensor Weight: 143g With Type C combination bracket
Media: Air Neutral GasMedium Temperature: -30…85°CPermissible Overload On One Side: 75 Mbar-30…75ºC 50 Mbar-30…85ºC
Ambient Temperature: -30… 85°CStorage Temperature: -40…85°C
Housing With Media Contact: PC 10% GFMeasuring Element With Media Contact: Silicone LSR Tempered At 200°C,Outgassing-FreeCover With Media Contact: PC
Switching Load: 5 A at 250 VACResistive Switching Load: 4 A at 30 VDCInductive Switching Load: 0.8 A at 250 VAC 0.7 A at 30 VDCSwitching Load GAR Application: 1 A at 250 VAC 0.2 A at 30 VDCContact System: Changeover SwitchLifespan: >10000000 Schaltspiele Mechanical
Installation Orientationany: Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value
UL: MFHX2/8 Or XAAK2/8DVGW: According to DIN EN 1854Low Voltage Directive: 2014/35/EUGas Appliances Directive: 2016/426/EU
AHU CRAC MOBILE HYDRAULIC
Connection Set Straight: For Ventilation Duct Including 2 M Hose PlasticAngle Type B
Combination Bracket Type C
Snap Ring: For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8…2.1 MMSnap Ring: For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8…1.1 MMAngle Type A
Fastening Screw: For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws RequiredConnection Set 90° Angled: For Ventilation Duct Including 2 M Hose MetalCalibration Certificate
Mounting Ring
Closed Fastening Ring
Additional Information:
