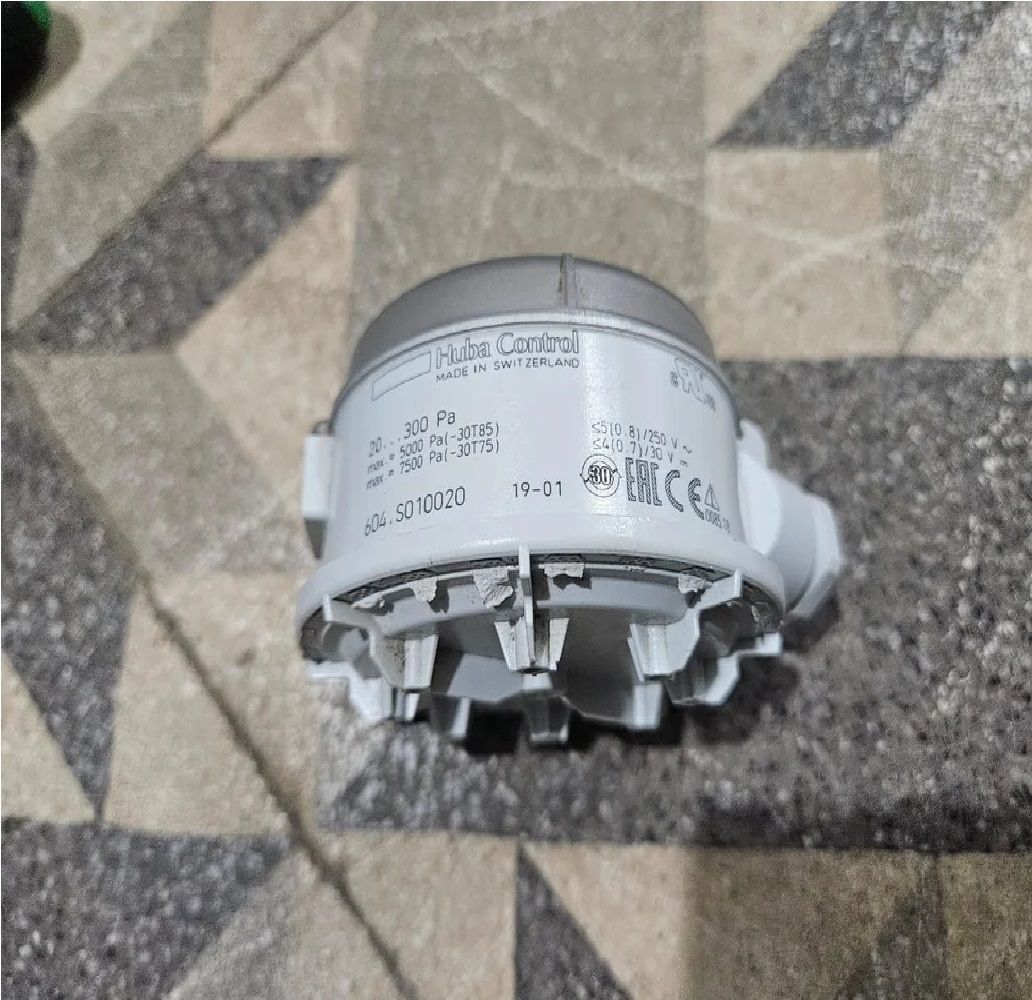

The Pressure Switches of Type 604 Monitor Filters and Fans in Ventilation Ducts As Well As Air Dampers In Primary/Secondary Controls in Δp Function The Series Divided Into Five Pressure Range Gradations Impresses With Extreme Ease Of Installation Combination Brackets,Snap-On Covers,And Screw Terminals.Unique Is The High Adjustment Accuracy Through Individual Scale Engraving
Easy To Install
User-Friendly Snap Closure For The Cover
Cable Entry Aid
Cable Strain Relief Integrated Into PG11
Combination Bracket For Vertical Or Horizontal Mounting

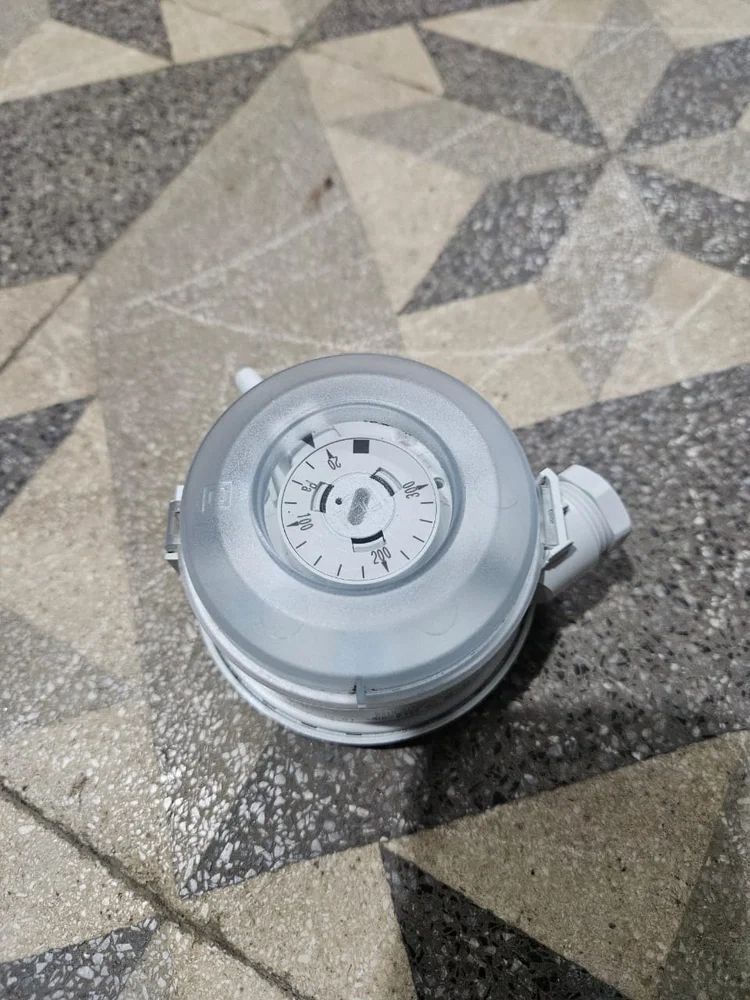

High Adjustment Accuracy Through Individual Scale Engraving Per Switch
Long-Term Stable Switching Points Through Trapezoidal Bead Membrane
Sensor Weight:143g With Type C combination bracket
Field Of Application
Media:Air Neutral Gas
Medium Temperature:-30…85°C
Permissible Overload On One Side:75 Mbar-30…75ºC 50 Mbar-30…85ºC
Ambient Condition
Ambient Temperature:-30… 85°C
Storage Temperature:-40…85°C
Material
Housing With Media Contact:PC 10% GF
Measuring Element With Media Contact:Silicone LSR Tempered At 200°C,Outgassing-Free
Cover With Media Contact:PC
Electrical Data
Switching Load:5 A at 250 VAC
Resistive Switching Load:4 A at 30 VDC
Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC
Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC
Contact System:Changeover Switch
Lifespan:>10000000 Schaltspiele Mechanical
Installation Guide
Installation Orientationany:Any Recommendation Vertical Pressure Connections Downwards Factory Adjustment Any Recommendation Horizontal Cover Down Switching Points Are Approx 11 Pa Lower Than The Set Scale Value Any Recommendation Horizontal Cover Upward Switching Points Are Approx 11 Pa Higher Than The Set Scale Value
Approval
UL:MFHX2/8 Or XAAK2/8
DVGW:According to DIN EN 1854
Low Voltage Directive:2014/35/EU
Gas Appliances Directive:2016/426/EU
Applications
AHU
CRAC
MOBILE HYDRAULIC
Accessories
Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic
Angle Type B
Combination Bracket Type C
Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8…2.1 MM
Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8…1.1 MM
Angle Type A
Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required
Connection Set 90° Angled:For Ventilation Duct Including 2 M Hose Metal
