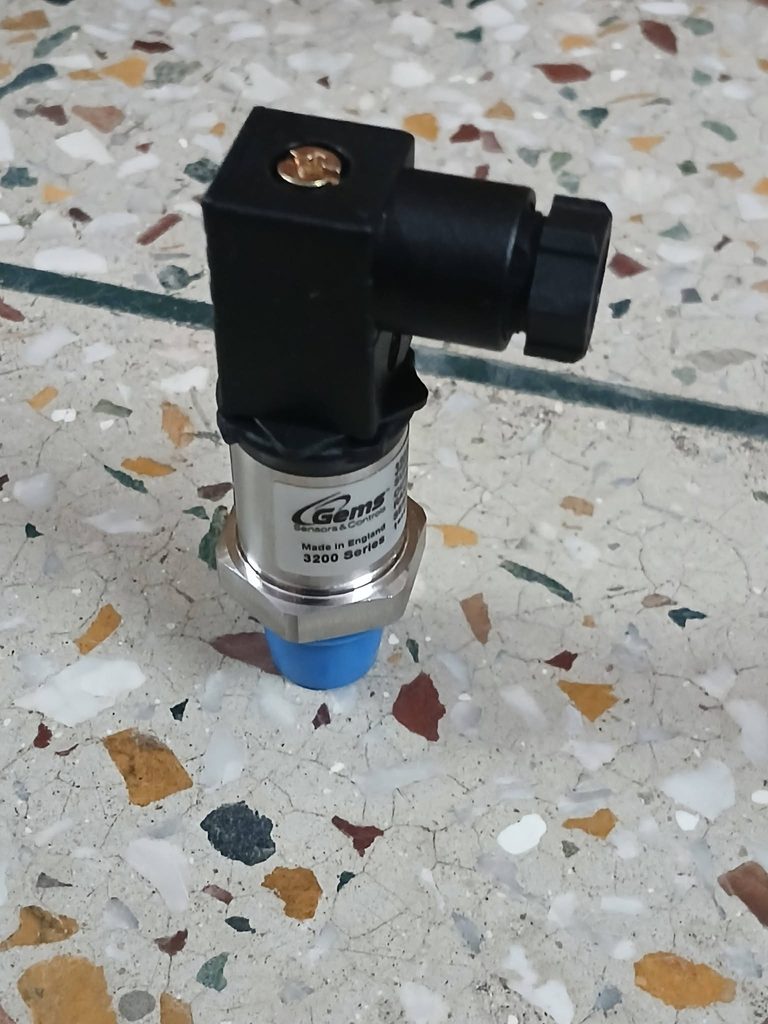

GEMS Pressure Transmitter Part No 3200S0250S05BR0002 Range 0 TO 250 Bar

GEMS Pressure Transmitter Part No 3200S0250S05BR0002 Range 0 TO 250 Bar

Product Information

GEMS 3200 Series Pressure Transmitter is Designed For Accurate and Reliable Pressure Measurement in industrial Systems. Part No. 3200S0250S05BR0002 has a 0 to 250 Bar pressure range and is suitable for high-pressure monitoring and control applications.
Technical Data

• Brand: GEMS Sensors
• MANUFACTURER: GEMS
• MADE IN: USA
• Series: 3200

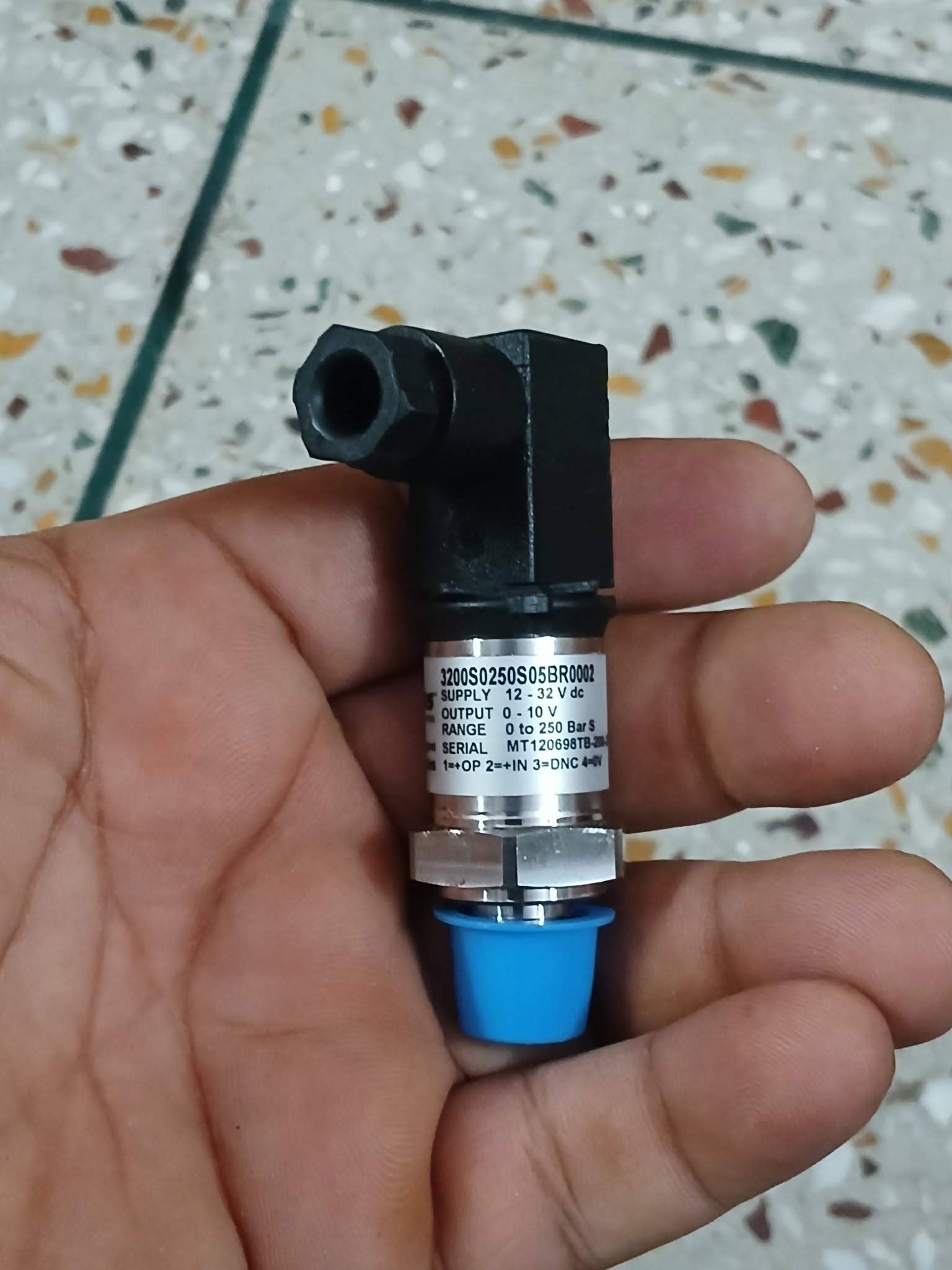

• Part No.: 3200S0250S05BR0002
• Range: 0 to 250 Bar
• Output: 0–10 VDC
• Supply: 12–32 VDC
• CONNECTION: 1/4″ NPT 304 SS.
• Sensing Technology: Sputtered Thin Film
• Construction: Stainless Steel
• Pressure Type: Gauge/Sealed Gauge as applicable
• Temperature: Approximately -40°C to +125°C, configuration dependent
• Compliance: RoHS

Product Features

• 0–250 Bar Pressure Range
• 0–10 VDC Analogue Output
• 12–30 VDC supply
• Robust industrial construction
• Stainless-steel wetted construction
• Reliable thin-film sensing technology
• Designed for demanding high-pressure applications
• Compact and durable design
• Suitable for continuous pressure monitoring

Field Of Application

Suitable for Hydraulic Systems, Pumps, Compressors, Industrial Machinery, Process Equipment, Water Treatment, Oil & Gas Equipment, Chemical Plants, Boiler Systems, Air & Gas Systems, HVAC, Industrial Automation and OEM Machinery.
Ambient Condition

Install within the specified pressure and temperature limits. Protect the transmitter from excessive vibration, mechanical shock, moisture and freezing. Ensure that the pressure medium is compatible with the wetted materials. Do not exceed the rated pressure or temperature limits.
Material

The 3200 Series Uses Robust Stainless-Steel Construction suitable for industrial pressure measurement. Exact wetted material and pressure-port specification should be verified from the complete part-number configuration.
Electrical Data

• Output: 0–10 VDC
• Supply Voltage: 12–30 VDC
• Signal: Analogue Voltage
• Use a suitable regulated DC power supply.
• Connect wiring according to the applicable connector pinout.

Installation Guide

1. Verify part number and pressure range before installation.
2. Confirm system pressure is within the transmitter’s rated range.
3. Check pressure-medium compatibility.
4. Install the correct pressure connection and seal.
5. Connect electrical wiring according to the supplied pinout.
6. Apply pressure gradually and check for leakage.
7. Never exceed the specified maximum pressure.

Approval

Available with applicable RoHS/CE compliance, depending on product configuration. Verify certification for the exact supplied model.
Accessories

• Mating Electrical Connector
• Pressure Fittings
• Sealing Washer
• Cable/Connector Accessories
• Calibration Certificate
• Mounting Accessories
