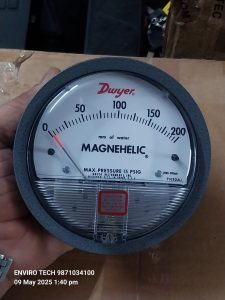

DWYER MAGNEHELIC® DIFFERENTIAL PRESSURE GAUGE

Range: 0–200 Inch of Water Column (In. W.C.)
Model No.: 2200

Product / Service Description

Dwyer Magnehelic® Differential Pressure Gauge is Designed for accurate measurement of positive pressure, negative pressure (vacuum), and differential pressure. The gauge operates without electrical power and is suitable for air and compatible non-combustible gases.

Specification / Additional Details

Brand: Dwyer
Series: 2000 Magnehelic®
Model: 2200
Range: 0–200 Inch of Water Column (In. W.C.)
Type: Differential Pressure Gauge
Accuracy: ±2% Full Scale
Display: Analog Dial
Power Requirement: No Electrical Power Required
Enclosure Protection: IP67
Process Connection: 1/8″ Female NPT High & Low Pressure Connections
Suitable Media: Air and compatible non-combustible gases
Mounting: Panel Mount / Surface Mount / Flush Mount options
Operating Temperature: Approximately -6.7°C to 60°C
Pressure Indication: Positive, Negative and Differential Pressure

Application

HVAC Systems
Air Filter Monitoring
HEPA Filter Monitoring
AHU & FCU Systems
Clean Rooms
Pharmaceutical Industries
Hospitals
Laboratories
Blower Pressure Monitoring
Fan Pressure Monitoring
Duct Pressure Measurement
Building Pressure Monitoring
Industrial Ventilation Systems

Model Range Examples

Model Range (In. W.C.)
2000-00N 0.05–0–0.20
2000-00 0–0.25
2000-0 0–0.50
2001 0–1
2002 0–2
2003 0–3
2004 0–4
2005 0–5
2006 0–6
2008 0–8
2010 0–10
2012 0–12
2015 0–15
2020 0–20
2025 0–25
2030 0–30
2040 0–40
2045 0–45
2050 0–50
2060 0–60
2080 0–80
2100 0–100
2120 0–120
2150 0–150
2160 0–160
2180 0–180
2200 0–200
2250 0–250
2300 0–300
2400 0–400
2500 0–500
