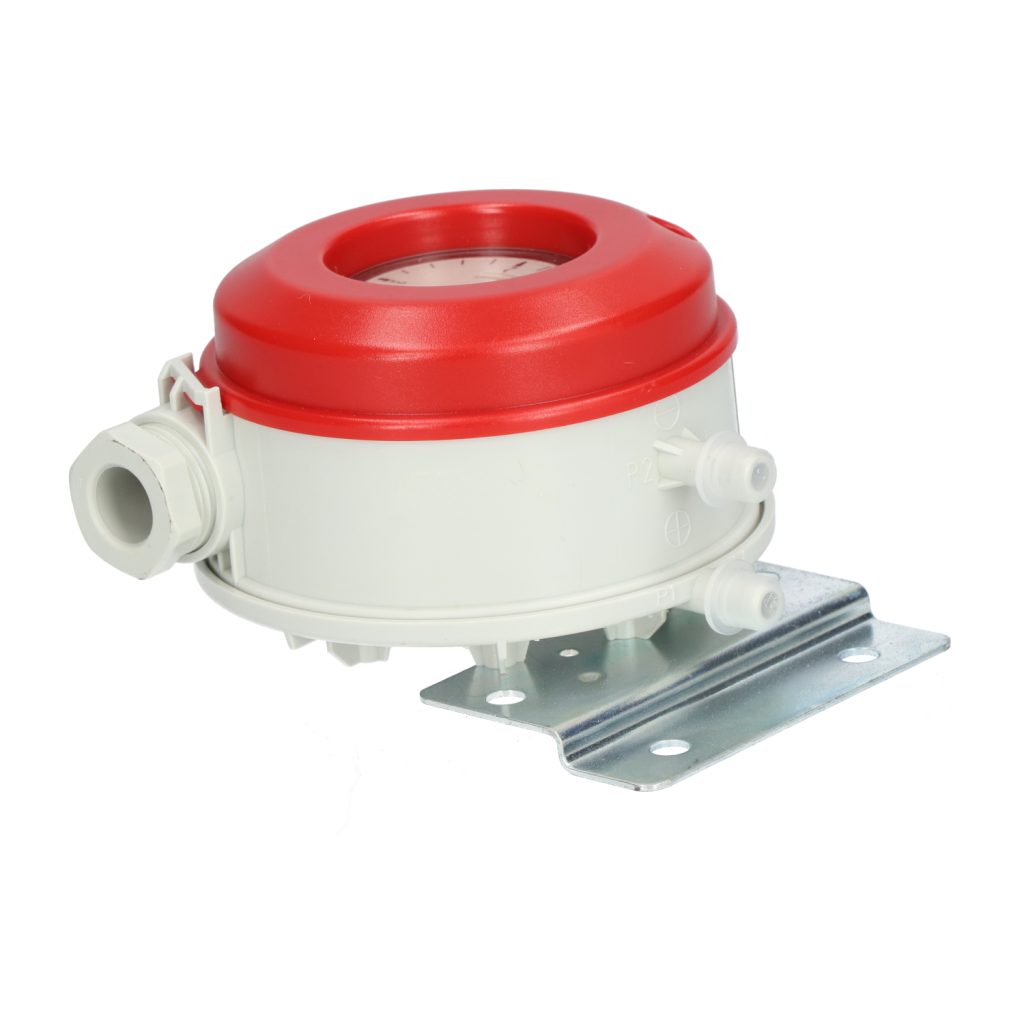

604 Differential Pressure Switch

604 Differential Pressure Switch

Used as DP Flow Switch in Ventilation Ducts For The Control of Filters and Fans,And in Primary and Secondary Control Systems For The Control of Dampers. Precise setpoint adjustment is Done Through individual scale and by Turning Knob.

Models

1. Model : 604.9200021 Range :  1….10 Mbar
2. Model : 604.9410002 Range :  500….2000 PAC
3. Model : 604.9010000 Range :  20….300 PAC
4. Model : 604.9410002 Range :  500….2000 PAC
5. Model : 604.9410000 Range : 500…2000 Pa

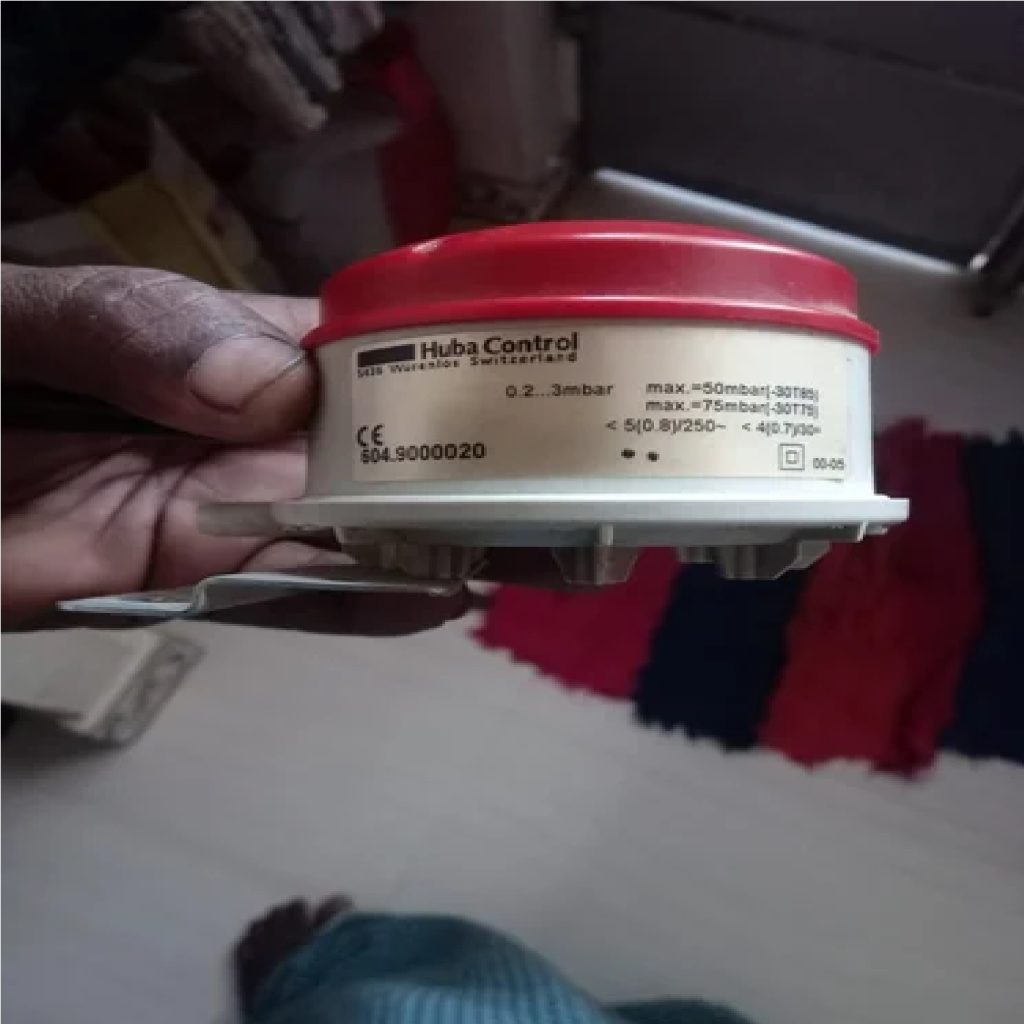

6. Model : 604.9000020 Range :  0.2….3 Mbar
7. Model : 604.9000020 Range :  0.2….3 Mbar
8. Model : 604.99957     Range :  0.2….3 Mbar
9. Model : 604.9010000 Range :  20….300 PAC
10. Model : 604.9010020 Range :  20….300 PAC
11. Model : 604.9210000 Range :  100….1000 PAC
12. Model : 604.9000002 Range :  0.2….3 Mbar
13. Model : 604.9010030 Range :  20….300 PAC
14. Model : 604.910000   Range :  0.5….5 Mbar
15. Model : 604.950000   Range :  1000….5000 PAC
16. Model : 604.9210030 Range : 100…1000 Pa

Technical Data

• Pressure Measuring Range:0…50 Mbar Relative & Difference
• Sensor Weight:143g With Type C combination bracket

Field Of Application

• Media:Air Neutral Gas
• Medium Temperature:-30…85°C
• Permissible Overload On One Side:75 Mbar-30…75ºC 50 Mbar-30…85ºC

Ambient Condition

• Ambient Temperature:-30… 85°C
• Storage Temperature:-40…85°C

Material

• Housing With Media Contact:PC 10% GF
• Measuring Element With Media Contact:Silicone LSR Tempered At 200°C,Outgassing-Free
• Cover With Media Contact:PC

Electrical Data

• Switching Load:5 A at 250 VAC
• Resistive Switching Load:4 A at 30 VDC
• Inductive Switching Load:0.8 A at 250 VAC 0.7 A at 30 VDC
• Switching Load GAR Application:1 A at 250 VAC 0.2 A at 30 VDC
• Contact System:Changeover Switch
• Lifespan:>10000000 Schaltspiele Mechanical

Applications

• AHU
• CRAC
• MOBILE HYDRAULIC

Accessories

• Connection Set Straight:For Ventilation Duct Including 2 M Hose Plastic
• Angle Type B
• Combination Bracket Type C
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 1.8…2.1 MM
• Snap Ring:For Angle A,B,C Or Direct Mounting For Wall Thickness 0.8…1.1 MM
• Angle Type A
• Fastening Screw:For Wall Thickness 1-2 MM Screw Length 6 MM Min 2 Screws Required
• Connection Set 90° Angled:For Ventilation Duct Including 2 M Hose Metal
• Calibration Certificate
• Mounting Ring
• Closed Fastening Ring
