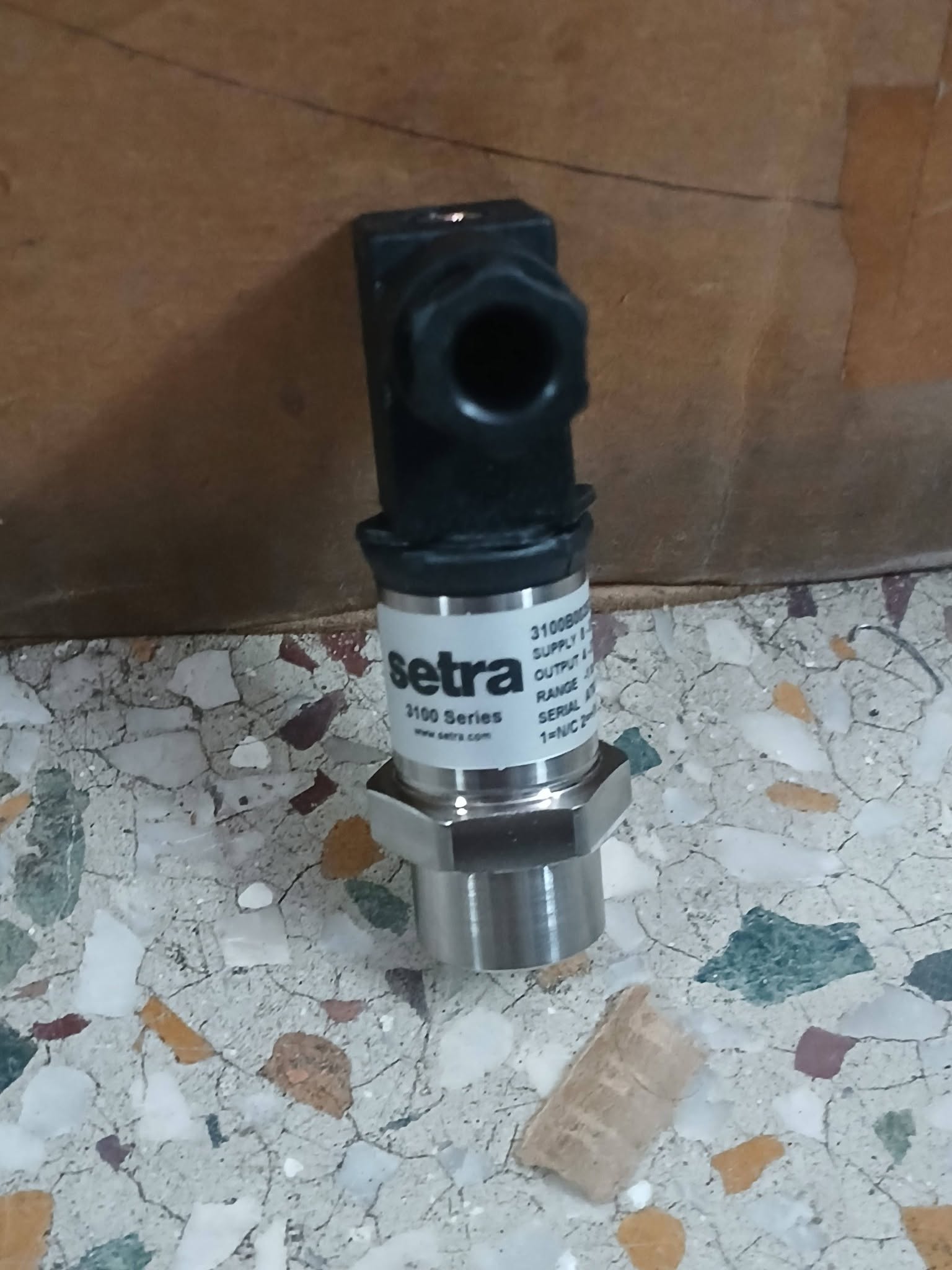

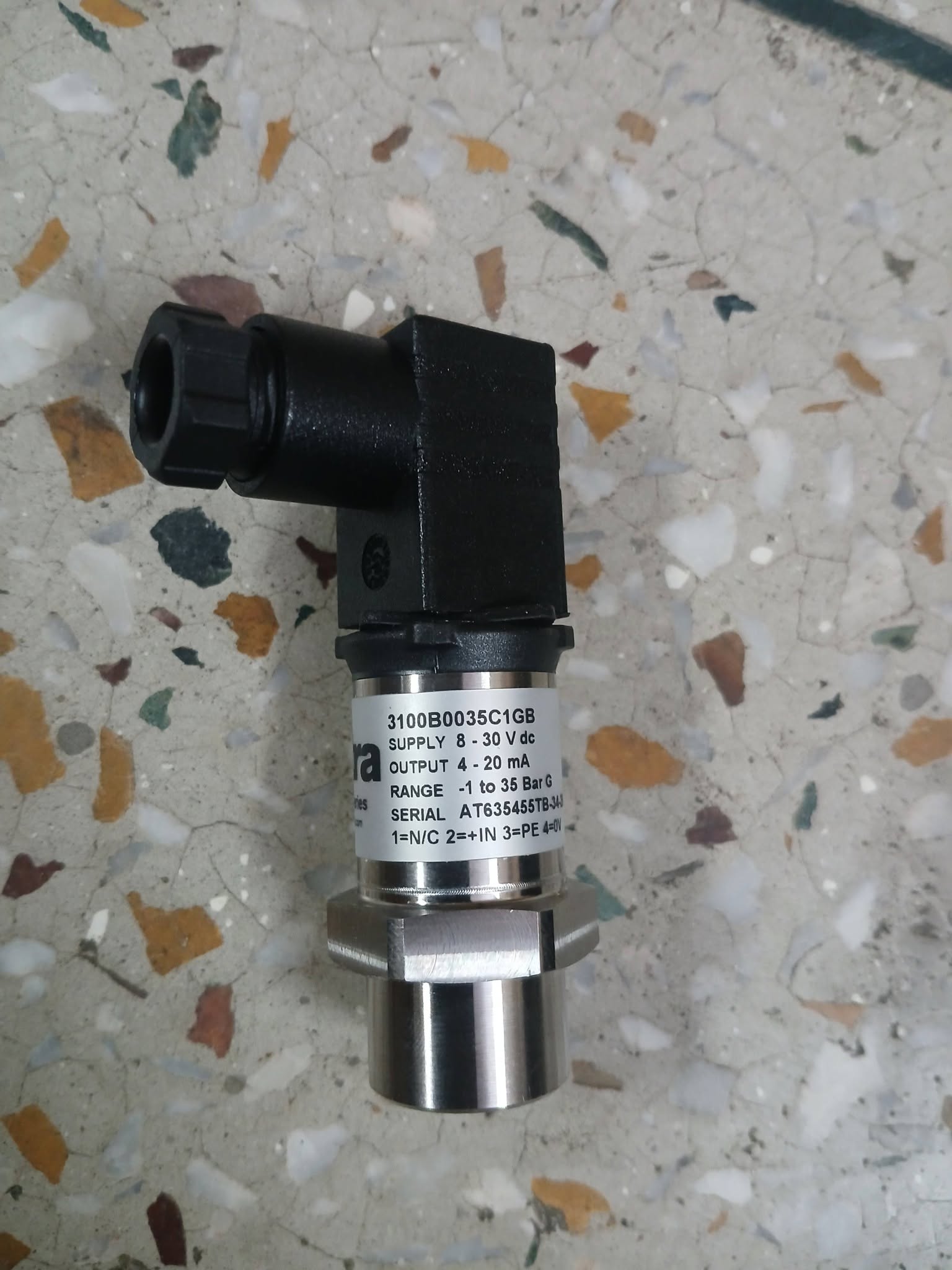

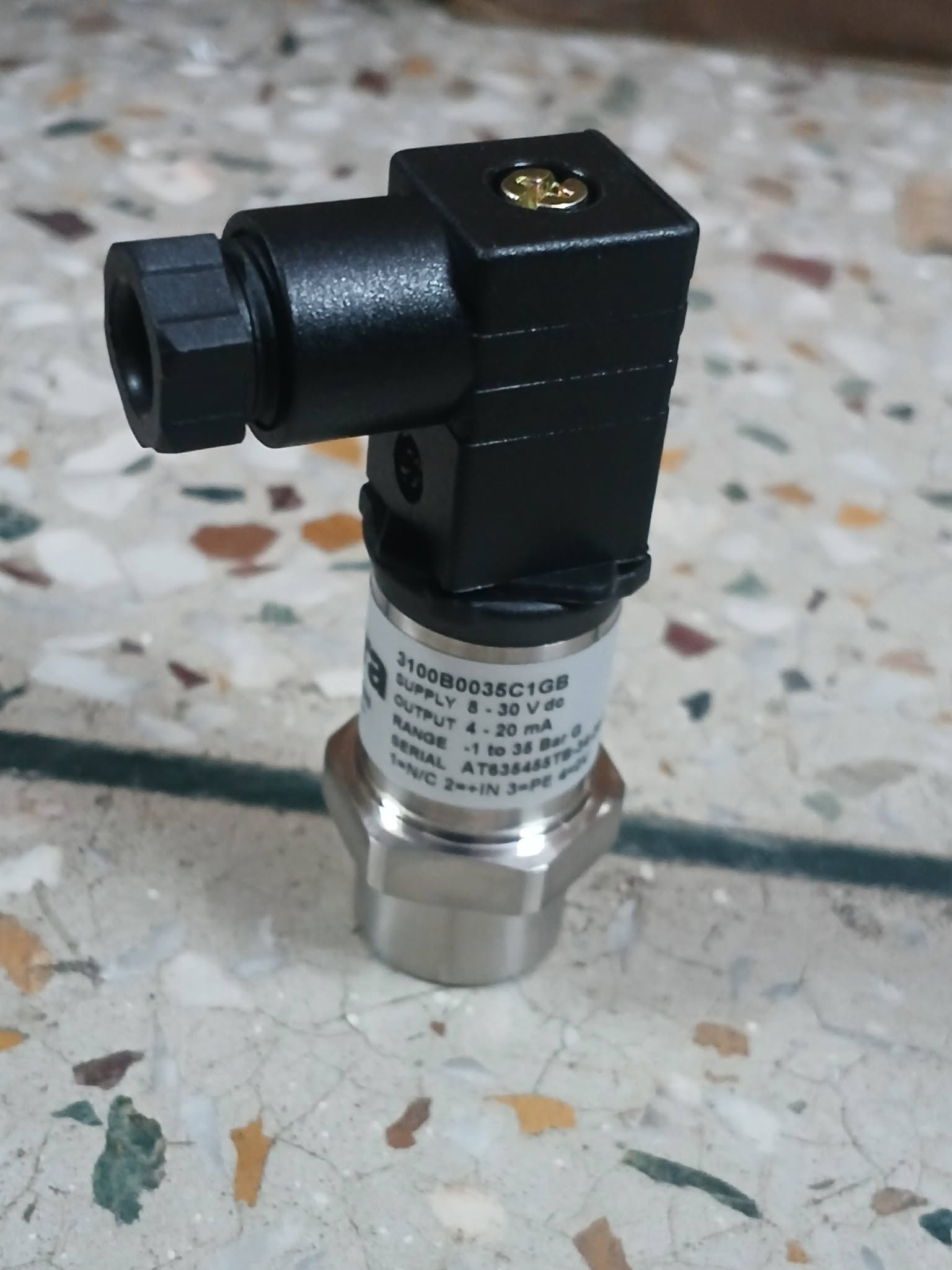

3100B0035C02B Setra Pressure Transmitter 0-35 Bar
Product Information
- Brand: Setra
- Model: 3100B0035C02B
- Product Type: Pressure Transmitter / Pressure Transducer
- Pressure Range: 0–35 Bar
- Pressure Type: Gauge
- Output: 4–20 mA
- Supply Voltage: 8–30 VDC
- Pressure Connection: 1/4″ NPT Male
- Electrical Connection: DIN 43650 Form C
- Enclosure: IP67
- Accuracy: ±0.25% FS
- Weight: Approx. 35 g
Technical Data
- Measuring Range: 0–35 Bar
- Accuracy: ±0.25% Full Scale
- Response Time: Approximately 1 ms
- Long-Term Stability: ±0.2% FS for ranges below 60 Bar
- Wetted Parts: 17-4PH stainless-steel diaphragm and 304 stainless-steel fittings
- Operating/Storage Temperature: -40°C to +125°C
- Protection Rating: IP67
Product Features
- Compact OEM Design
- Sputtered thin-film sensing technology
- Stainless-steel construction
- High reliability and stability
- 4–20 mA current output
- Reverse-wiring protection
- IP67 environmental protection
- Suitable for demanding industrial environments
Field Of Application
- Hydraulic systems
- Industrial process monitoring
- HVAC and compressors
- Refrigeration systems
- Pumps and booster pump systems
- Industrial machinery
- OEM equipment
- Irrigation systems
Ambient Condition
- Operating Temperature: -40°C to +125°C
- Storage Temperature: -40°C to +125°C
- Compensated Temperature Range: -40°C to +125°C
- Enclosure Protection: IP67
- Vibration Resistance: Designed for demanding industrial applications
Material
- Housing/Construction: Stainless steel
- Diaphragm: 17-4PH stainless steel
- Fittings: 304 stainless steel
- Wetted Parts: Stainless steel
Electrical Data
- Output: 4–20 mA
- Supply/Excitation: 8–30 VDC
- Circuit: 2-wire
- Electrical Connection: DIN 43650 Form C
- Maximum Loop Resistance: (Supply Voltage − 8) × 50 Ω
- Reverse Wiring Protection: Yes
Installation Guide
- Install the transmitter on a compatible 1/4″ NPT male process connection.
- Ensure the pressure connection is clean and properly sealed.
- Connect the 2-wire 4–20 mA circuit according to the wiring diagram.
- Use an appropriate DC power supply within the specified 8–30 VDC range.
- Avoid excessive mechanical force on the pressure port.
- Check for leakage after installation.
- Do not exceed the rated pressure range during normal operation.
Approval
- cURus
- RoHS Compliant
- CE/EMC compliance is specified for the Model 3100 family.
Accessories
- DIN 43650 Form C mating connector
- Suitable 1/4″ NPT sealing accessories
- Pressure connection fittings
- Electrical cable/connector accessories
- Mounting and sealing accessories
