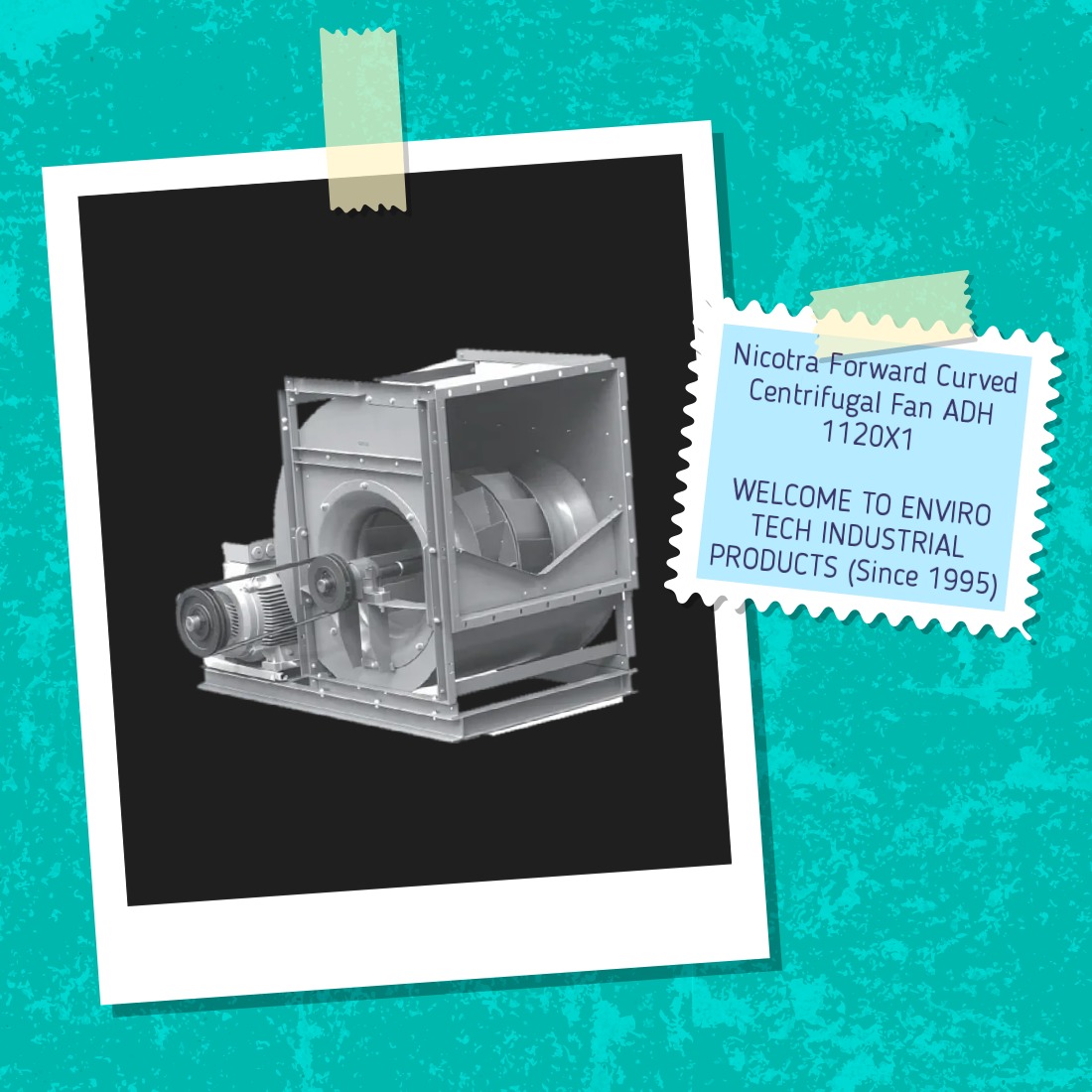

The Nicotra Forward Curved Centrifugal Fan ADH 1120 X1 is a Premium Heavy-Duty Double Width Double Inlet (DWDI) Belt-Driven Centrifugal Fan Engineered For High-Volume Air Movement In Commercial And Industrial HVAC Systems. Designed With a Forward-Curved Impeller And Galvanized Steel Construction, It Delivers Reliable Airflow, Energy-Efficient Performance, Low Vibration, And Long Service Life. The ADH Series is Widely Used in Air Handling Units (AHUs), Ventilation Systems, And Industrial Process Air Applications.
Key Features – Nicotra
- High-Efficiency Forward Curved DWDI Impeller
- Heavy-Duty Galvanized Steel Fan Housing
- Belt-Driven Design For Flexible Speed Selection
- High Airflow With Stable Static Pressure
- Low Noise And Low Vibration Operation
- Dynamically Balanced Impeller For Smooth Running
- Long Service Life With Minimal Maintenance
- Suitable For Continuous Industrial Operation
- Compatible With IE2, IE3 And IE4 Electric Motors
- AMCA-Certified Air Performance For The ADH Series.
Applications – Nicotra
- Air Handling Units (AHU)
- HVAC Ventilation Systems
- Pharmaceutical Manufacturing
- Hospitals & Clean Rooms
- Commercial Buildings
- Shopping Malls
- Hotels & Airports
- Food Processing Plants
- Textile Industry
- Industrial Ventilation Systems
- Dust Collection & Process Air Systems
- Fresh Air and Exhaust Air Systems
Product Specifications – Nicotra ADH 1120 X1
| Parameter | Specification |
|---|---|
| Fan Type | Forward Curved Centrifugal Fan |
| Series | ADH 1120 X1 |
| Configuration | Double Width Double Inlet (DWDI) |
| Drive Type | Belt Driven |
| Impeller Material | Galvanized Steel |
| Housing Material | Galvanized Steel |
| Rotation | Clockwise / Counter Clockwise (As Required) |
| Motor Type | 3-Phase TEFC Motor |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 380–415 V (Typical) |
| Mounting | Horizontal |
| Speed Control | VFD Compatible |
| Balancing | Dynamically Balanced |
| Applications | HVAC, AHU, Industrial Ventilation |
| Country of Origin | Italy (Nicotra) |
Note: The Exact Motor Power, Airflow (CFM), Static Pressure (MMWG), RPM, And Impeller Weight For The ADH 1120 X1 Depend On The Selected Operating Duty Point And Motor Configuration. Nicotra Provides These Values Through Its Selection Software And Performance Curves Rather Than a Single Fixed Specification.
