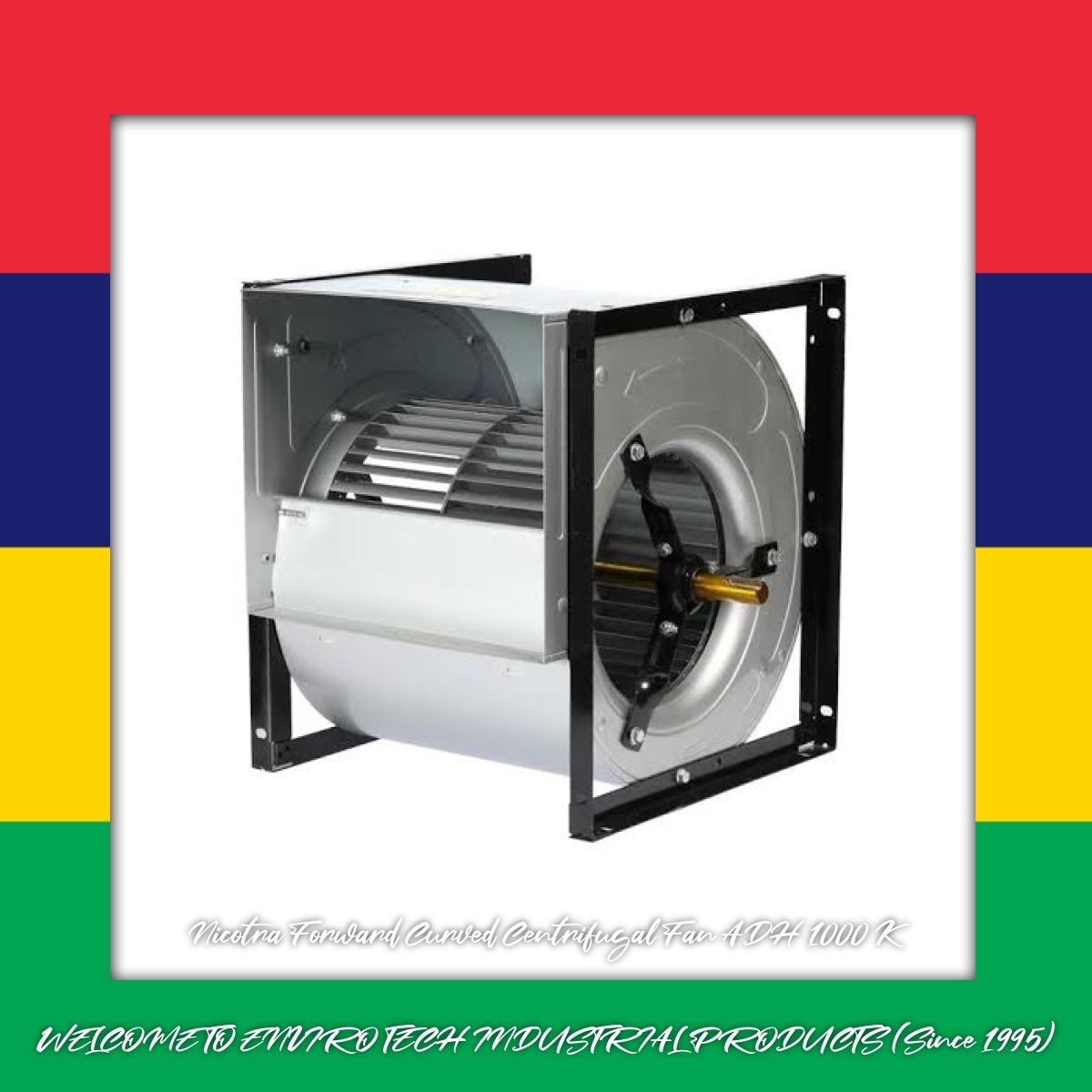

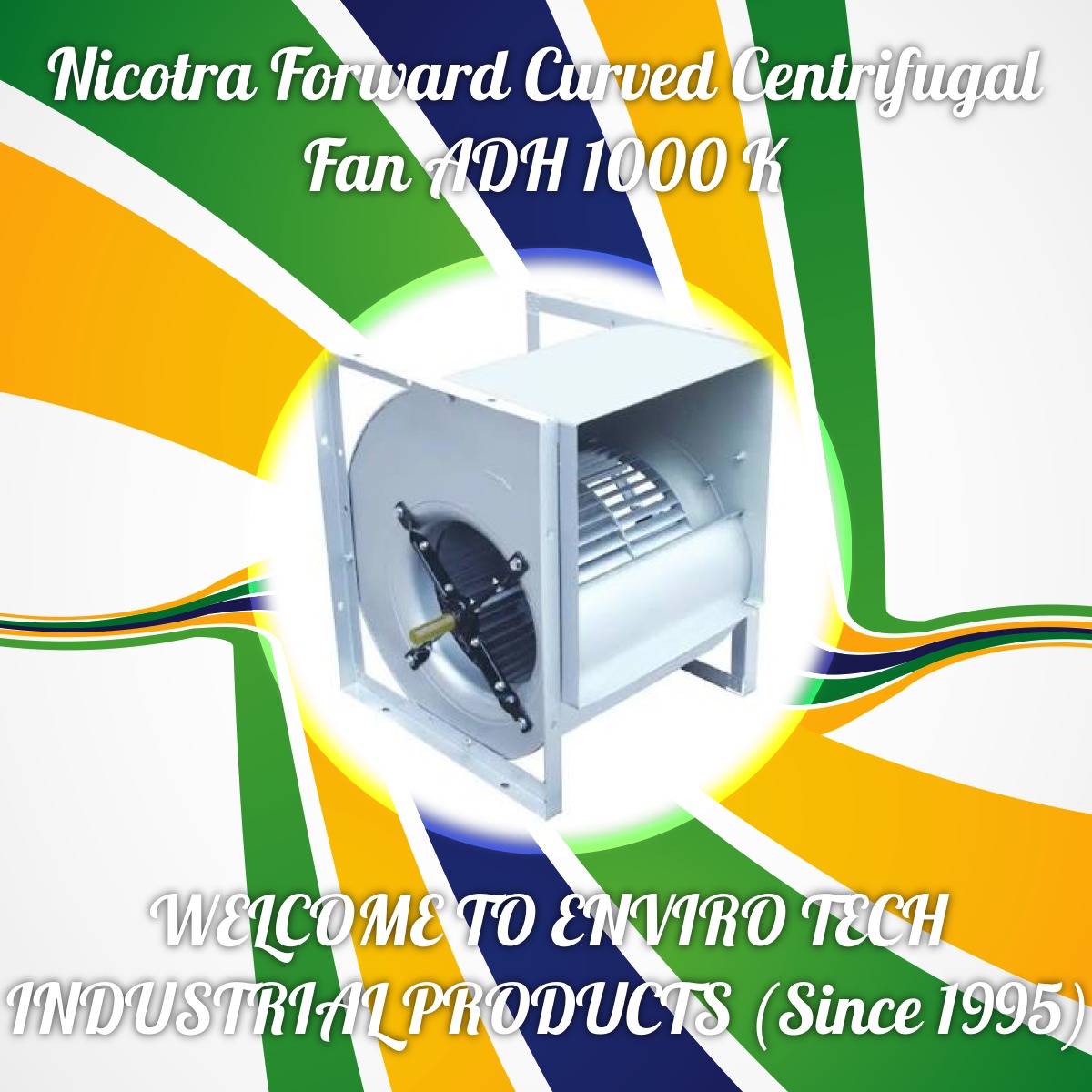

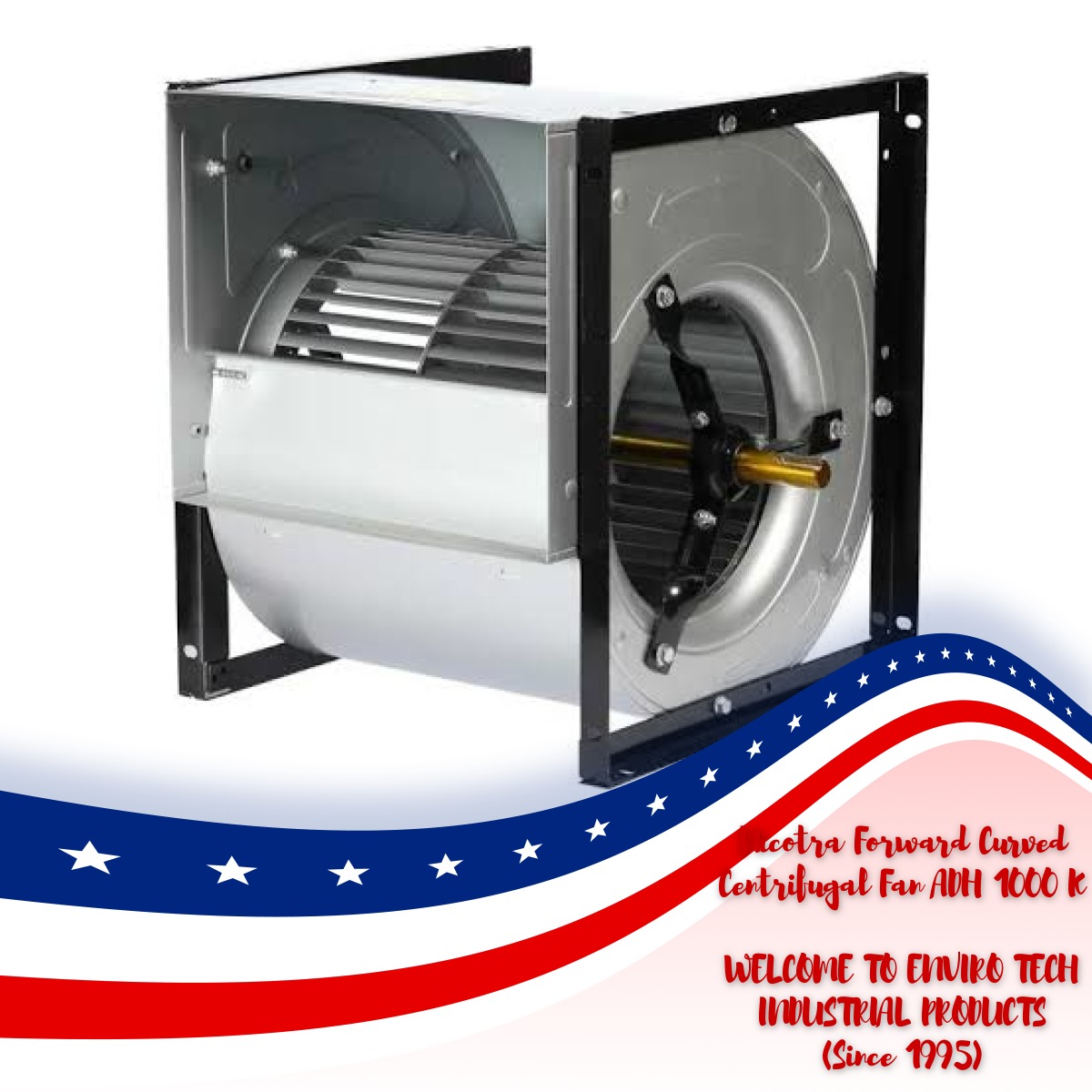

Nicotra Forward Curved Centrifugal Fan ADH 1000 K

The Nicotra Forward Curved Centrifugal Fan ADH 1000 K is a Heavy-Duty, Double-Inlet, Belt-Driven Centrifugal Fan Designed For High-Volume Air Handling Applications. It Features a Forward-Curved Galvanized Steel Impeller And Robust Welded Construction, Making It Suitable For Continuous Industrial And Commercial HVAC Operation. The ADH Series Is Engineered For Reliable Airflow, Low Vibration, And High Efficiency In Demanding Environments.

Key Features

  • Double Inlet Forward Curved Centrifugal Fan
  • Heavy-Duty Belt-Driven Design
  • Galvanized Steel Impeller With 46 Forward-Curved Blades
  • Impeller Diameter: 995 MM
  • Heavy Reinforced Side Frame
  • Dynamically Balanced Impeller For Smooth Operation
  • Low Vibration And Low Noise
  • High Airflow With Stable Performance
  • Suitable For Continuous Duty Up to 80–100°C (Depending On Configuration)
  • AMCA Certified Performance Data Available
  • Designed According To DIN 24166 Accuracy Standards.

Applications

  • Air Handling Units (AHU)
  • HVAC Systems
  • Pharmaceutical Manufacturing
  • Clean Rooms
  • Hospitals
  • Commercial Buildings
  • Industrial Ventilation
  • Textile Industry
  • Food Processing Plants
  • Chemical Plants
  • Electronics Manufacturing
  • Fresh Air & Exhaust Air Systems
  • Ventilation Systems

Product Specifications

Specification Details
Model ADH 1000 K
Fan Type Forward Curved Double Inlet Centrifugal Fan
Drive Belt Driven
Impeller Diameter 995 mm
Number of Blades 46
Impeller Weight 89 KG
Maximum Airflow Up to 300,000 m³/h (Series Capability)
Maximum Static Pressure Up to 1,800 Pa (≈183 MMWG, Series Capability)
Fan Speed Approx. 200–700 RPM (Depends On Duty Point)
Motor Power Up to 75 kW (Depends On Duty Point)
Construction Galvanized Steel
Efficiency Up to 69%
Bearing Type Heavy-Duty Pedestal Bearings
Balancing Dynamic Balancing (ISO Standard)

The Official Nicotra Technical Data For The ADH 1000 Confirms:

  • Impeller Diameter: 995 mm
  • Number Of Blades: 46
  • Impeller Weight: 89 kg
  • Performance Varies With Fan Speed, Pulley Ratio, And Motor Selection, So Airflow, Static Pressure, And Motor Power Depend On The Selected Duty Point.
