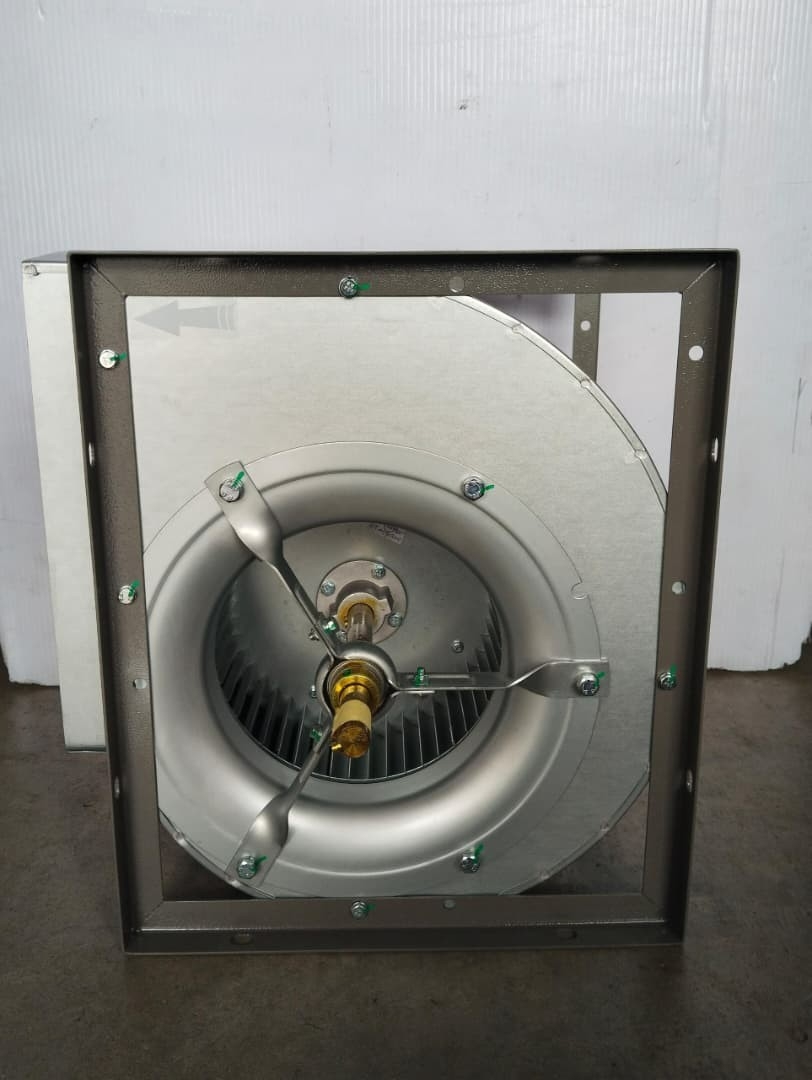

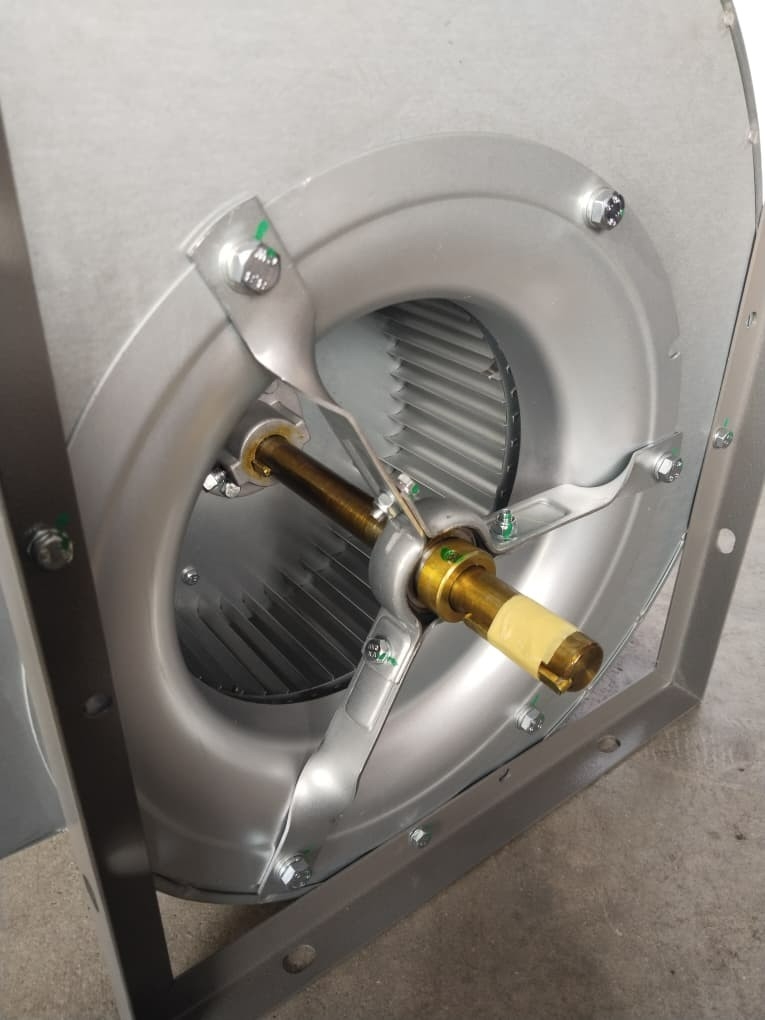

Nicotra Forward Curved Centrifugal Fan ADH 250 R

Nicotra Forward Curved Centrifugal Fan ADH 250 R

Nicotra Forward Curved Centrifugal Fan ADH 250 R is a Compact, High-Performance Centrifugal Fan Designed for Efficient Air Movement in HVAC Systems, Air Handling Units (AHU), Ventilation, And Air Exhaust Applications. Its Forward-Curved Centrifugal Design Provides Reliable Air Flow With Smooth And Quiet Operation. The ADH Series is Listed by AMCA as a Forward Curved DWDI (Double Width Double Inlet) Centrifugal Fan Range.

Key Features:

• Model: ADH 250 R
• Type: Forward Curved Centrifugal Fan
• Configuration: DWDI – Double Width Double Inlet
• Suitable for: AHU, HVAC, Industrial Ventilation & Air Exhaust
• Compact And Durable Construction
• Reliable Performance And Low-Noise Operation
• Suitable For Continuous Air Circulation And Ventilation Applications

Note: Actual Airflow, Static Pressure, Motor Power, RPM, And Efficiency Depend On The Selected Operating Point And Fan Configuration.


Applications – Nicotra Forward Curved Centrifugal Fan ADH 250 R

• Air Handling Units (AHU)
• HVAC Systems
• Industrial Ventilation
• Air Conditioning Systems
• Fresh Air Supply
• Air Circulation Systems
• Exhaust & Ventilation Systems
• Factory & Commercial Building Ventilation
• Heating and Cooling Systems
• General Industrial Air Movement

The ADH Series Is a Forward-Curved, Double-Width Double-Inlet (DWDI) Centrifugal Fan Family Suitable For Commercial And Industrial Applications.

Product Specifications – Nicotra Forward Curved Centrifugal Fan ADH 250 R

• Model: ADH 250 R
• Fan Type: Forward Curved Centrifugal Fan
• Impeller Diameter: 250 mm
• Number of Blades: 38
• Motor Power: 0.37 kW
• Airflow / Flow Rate: Up to 1,600 m³/h
• Static Pressure: Up to 370 Pa
• Motor Speed: 2,800 RPM
• Noise Level: Approx. 65 dB(A)
• Voltage: 230 V
• Frequency: 50 Hz
• Material: Galvanized Steel
• Weight: Approx. 10 kg
• Dimension (L × W × H): Approx. 340 × 250 × 290 mm
• Insulation Class: Class F
• Operating Temperature: -20°C to +60°C
• Bearing Type: Ball Bearing
• Mounting Type: Base Mounted
• Application: HVAC, AHU, Ventilation, Air Handling Units
• Drive: Direct Drive

Note: Exact Performance Depends On The Specific ADH 250 Configuration And Operating Point. The Nicotra Technical Data Confirms The 250 MM Impeller Size And 38 Blades; The Above Product-Listing Specifications Are From A Supplier Listing.
